Models

All our models are patented

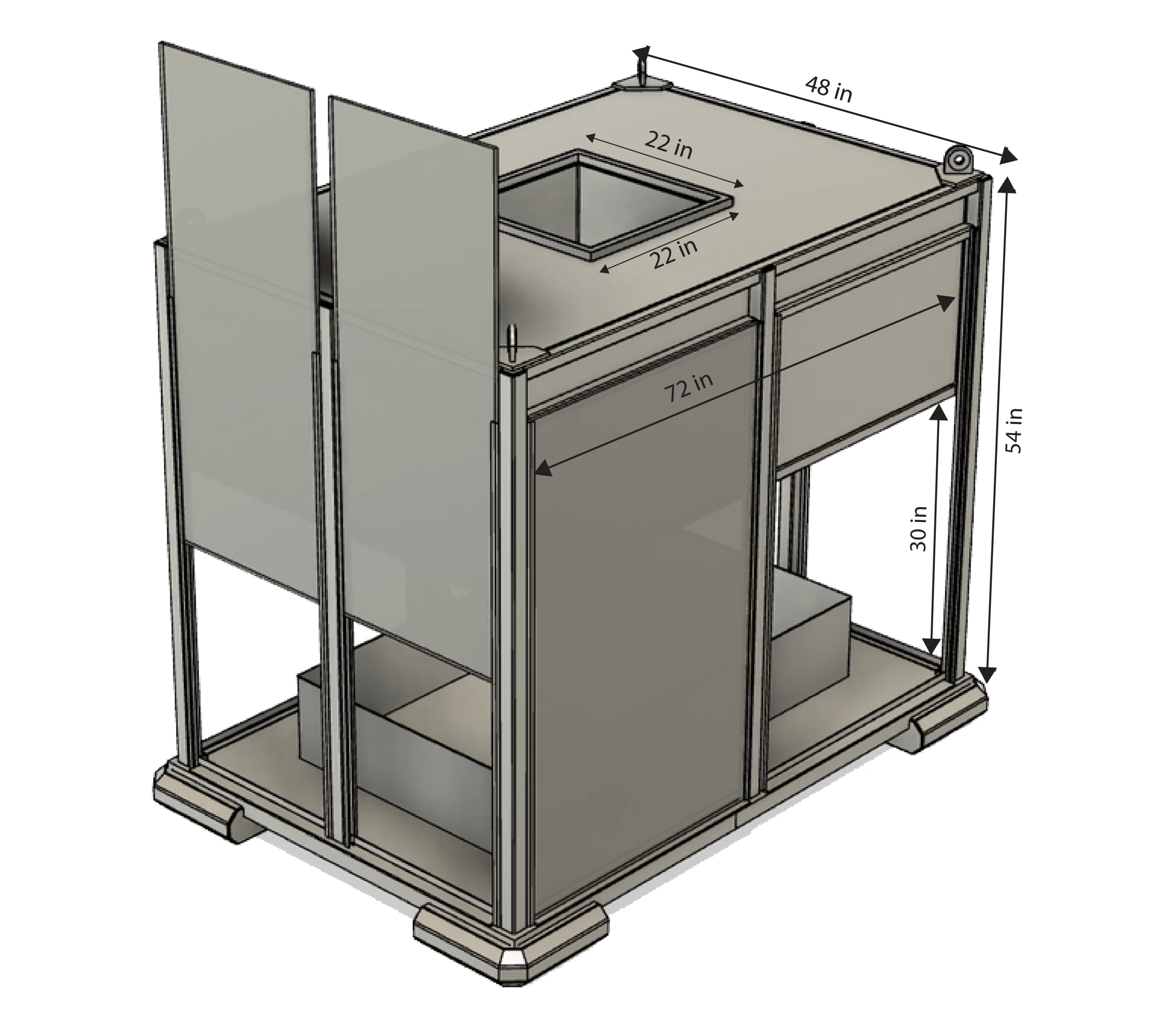

JXBOX8 DFO

  • Designed for use with 8″submersible pumps
  • DFO compliant fish screens (Max 2000GPM)
  • 2600 lbs of floatation with the use of additional floats
  • 4000+ gpm rated
  • 600lbs net weight
  • 1/4″ 5052 aluminum reservoir
  • 13″ water level required
  • Extremely durable tig welded joints

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

Additional Floats

  • Easy to install
  • Locks in place support

JXBOX6 DFO

  • Designed for use with 6″ & 8″submersible pumps (Heavier pumps may require extra float)

  • DFO compliant fish screens (Max 2000GPM)
  • 1800 lbs of floatation
  • 4000+ gpm rated
  • 0lbs net weight
  • 1/4″ 5052 aluminum reservoir
  • 13″ water level required

  • Extremely durable tig welded joints

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBOX4 DFO

  • Designed for use with 4″
    submersible pumps
  • DFO compliant fish screens (max 600 GPM)
  • 350 lbs of floatation
  • 600 GPM rating per DFO
  • 150 lbs net weight

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 8″ water level required

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBOX3

  • Designed for use with 3″ submersible pumps
  • 135 lbs of floatation
  • 400 GPM rating
  • 49 lbs net weight
  • 6″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • Non Compliant DFO approved screen area (hole size compliant per request)

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBOX2

  • Designed for use with 2″ submersible pumps
  • 58lbs of floatation
  • 300 GPM rating
  • 32 lbs net weight
  • 4″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • Non Compliant DFO approved screen area (hole size compliant as per request)

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time in/around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL8DFO

  • Designed for use with 8″ suction pumps
  • 240lbs of floatation
  • DFO compliant fish screens
    (Max 2000GPM)
  • 450 lbs net weight
  • 4000 GPM rating
  • 10″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 8″ pipe (connection type upon request)

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL8

  • Designed for use with 8″ suction pumps
  • 58lbs of floatation
  • 3000 GPM rating
  • 72 lbs net weight
  • 10″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 8″ pipe (connection type upon request)
  • 2.5mm screen hole size

  • Non Compliant DFO approved screen area

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL6DFO

  • Designed for use with 6″ suction pumps
  • 240lbs of floatation
  • DFO compliant fish screens (Max 2000GPM)
  • 450 lbs net weight
  • 4000 GPM rating
  • 10″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 6″ MPT connection

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL6

  • Designed for use with 6″ suction pumps
  • 58lbs of floatation
  • 2000 GPM rating
  • 72 lbs net weight
  • 10″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 6″ MPT connection
  • 2.5mm screen hole size

  • Non Compliant DFO approved screen area

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL4

  • Designed for use with 4″ suction pumps
  • 40 lbs of floatation
  • 700 GPM rating
  • 30 lbs net weight
  • 5″ water level required

  • Manufactured with 1/8″ 5052 Aluminum

  • Extremely durable tig welded joints

  • 4″ MPT connection
  • Non Compliant DFO approved screen area (hole size compliant per request)

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%

JXBUL3

  • Designed for use with 3″ suction pumps
  • 18 lbs of floatation
  • 600 GPM rating
  • 19 lbs net weight
  • 5″ water level required
  • Manufactured with 1/8″ 5052 Aluminum
  • Extremely durable tig welded joints
  • 3″ MPT connection
  • Non Compliant DFO approved screen area (hole size compliant per request)

Design Advantages

Floating Feature

  • Constant visual of pumps
  • Ease of deployment
  • Ease of movement in water
  • Reduces personnel time around water
  • Removes disturbance to river/ lake beds
  • Pumps water from the top

Reservoir Feature

  • Removes suction Velocity
  • Reduces build up on pump by up to 99%
